Fehlerbudgets und Streuung

Error budgets and dispersion

Why doesn't a rifle always shoot as precisely as one might expect, despite high-quality components? The answer lies in the so-called error budget. This concept helps explain where dispersion comes from and why precision cannot be increased indefinitely.

What is an error budget?

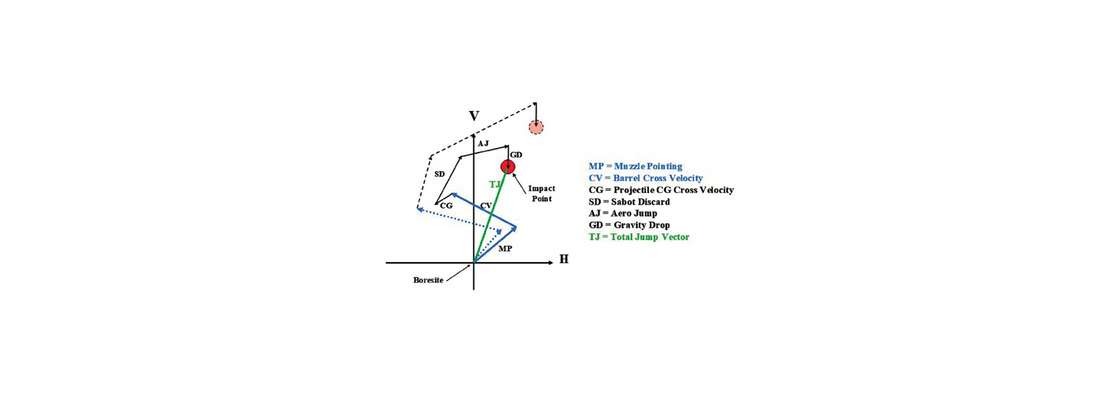

An error budget describes the sum of all individual errors that contribute to the dispersion of a bullet. Every shot shows small deviations that can be represented as vectors. The vector sum of these errors ultimately determines the point of impact.

Relevant sources of error include:

- Barrel movement and muzzle direction when the shot is fired

- Velocity and angle of the bullet as it leaves the muzzle

- aerodynamic jump of the bullet

- Gravity

- Contact and friction between bullet and barrel

- Rifle cant and aiming deviations

When looking at short-range dispersion, influences such as wind, bullet mass or muzzle velocity play only a minor role. What matters above all is the behaviour of barrel and bullet during interior ballistics and immediately at muzzle exit.

Dispersion never gets better with distance

A fundamental principle of ballistics states: Dispersion, measured as an angle, never becomes smaller with increasing distance. For a bullet to return to its ideal line along the way, an omniscient authority would have to intervene permanently with corrections. In reality, no such correction exists.

Since the direction and magnitude of the individual errors are usually unknown, they are combined statistically. The usual approach is the root-sum-square method, in which the individual contributions are squared, added, and the square root is then taken. This allows the total dispersion to be estimated realistically.

Dispersion arises from variability

It is not the absolute error that matters, but its shot-to-shot variability. Every shot has a slightly different error budget. It is precisely these differences that lead to the dispersion of a shot group on the target.

Even if a single influencing factor is improved, the dispersion does not disappear. Too many independent effects act at the same time for perfect precision to be achieved.

The influence of bullet-barrel coupling

Of particular interest is the coupling between bullet and barrel. Simulations were carried out using a weapon dynamics code that has been in use for decades, in order to investigate the influence of this interface on dispersion.

The focus was on solid copper bullets with and without circumferential grooves (cannelures). These grooves reduce the radial stiffness of the bullet in the barrel. The result was surprising:

- lower contact stiffness leads to significantly lower dispersion

- with solid copper bullets, a dispersion reduction of around 40 % was observed

- increasing stiffness worsens precision

This behaviour contradicts experience from the medium and large calibre range, where higher stiffness often leads to better precision.

Comparison with copper-jacketed lead-core bullets

Classic copper-jacketed lead-core bullets behave differently. Because of the low yield strength of lead, the core deforms plastically during the acceleration phase. This deformation reduces the axial tilt of the bullet in the barrel and has a dispersion-reducing effect.

This explains the good precision characteristics of such bullets that are often observed in practice, which cannot be fully predicted with purely elastic models.

Conclusion

Dispersion is the result of many small, random influences. The interaction between bullet and barrel is particularly decisive. With modern solid copper bullets, excessive stiffness can even worsen precision. Design elements such as cannelures therefore make technical sense and are not pure marketing.

Anyone who wants to reduce dispersion must consider the entire weapon system. Absolute perfection is unattainable, but a sound understanding of the sources of error brings us significantly closer to the maximum achievable precision.





The concepts, relationships and physical explanations presented in this article are based in large part on the work and publications of Jeff Siewert, whose analyses of error budgets, bullet-barrel interaction and the origin of dispersion form a central foundation of this text.
